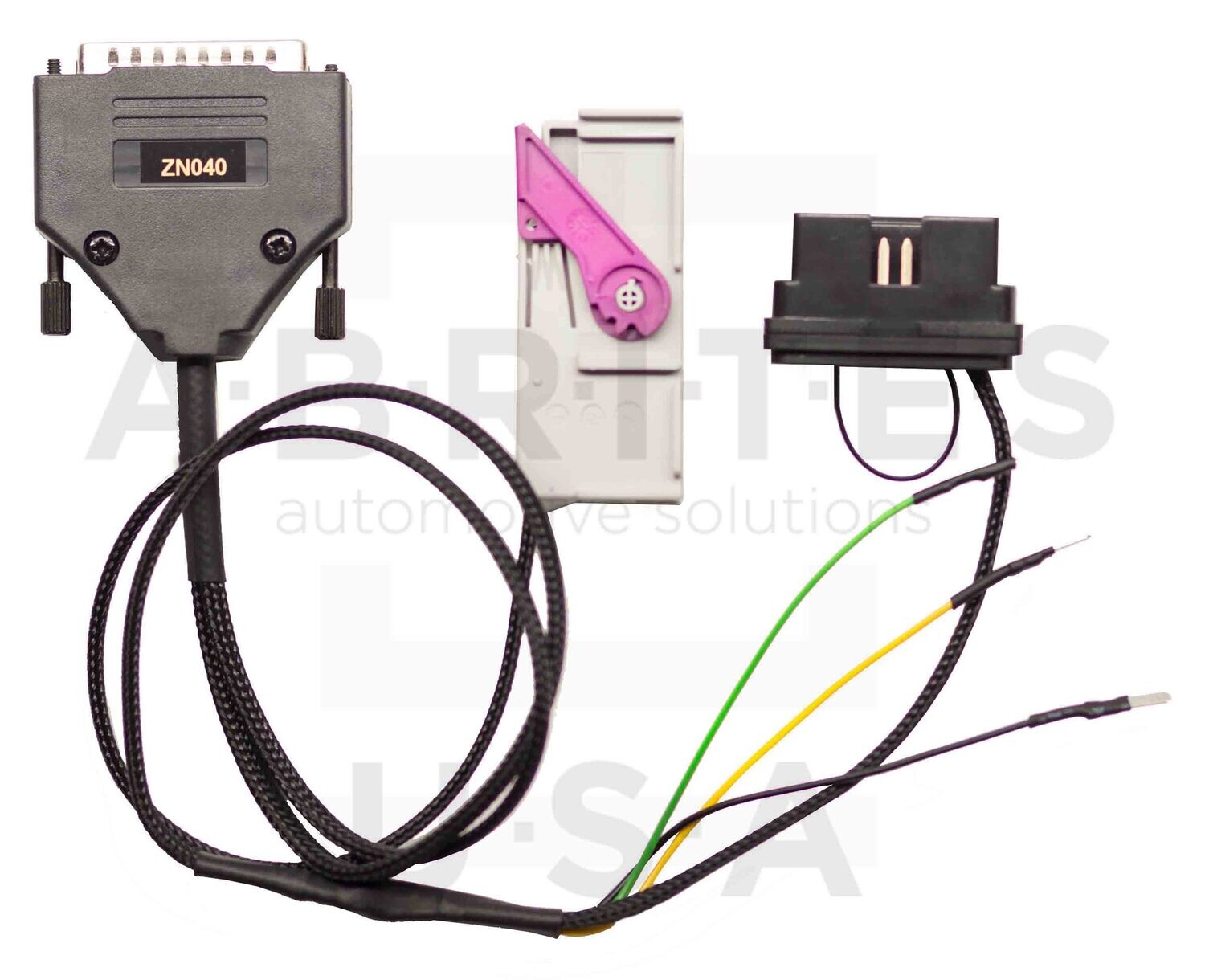

ZN040- A6/A7/A8 CAN Adapter
Product Details
The ZN040 adapter is used when performing All Keys Lost procedures for Audi A6/A7/A8 2011+ with BCM2.
The adapter provides all necessary connections:
- CAN separator – used for connection to the internal CAN-BUS of the vehicle for reading the ECU and TCU
- LIN connector (green wire) – used for connection to the internal LIN-BUS of the vehicle for reading the ELV
- OBDII connector – used to force the IGN ON
- B+ connector (yellow wire) – used for connection to B+ when reading the ECU and TCU through the CAN separator
- GND connector (black wire) – used for connection to GND when reading the ECU and TCU through the CAN separator
An AVDI interface and VN003 are required to use this adapter.
30 day returns accepted on defective hardware items.
User of these products accepts full legal responsibilities for proper usage. These products are intended for legal use only. ABRITES USA does not condone or accept any responsibility for misuse of it's products.
Thank you! ~ABRITES USA
